Ultrafine Uncoated Ground Calcium Carbonate
1750 to 1880 mesh, D50 2 to 2.4 µm, D97 max 8 µm.

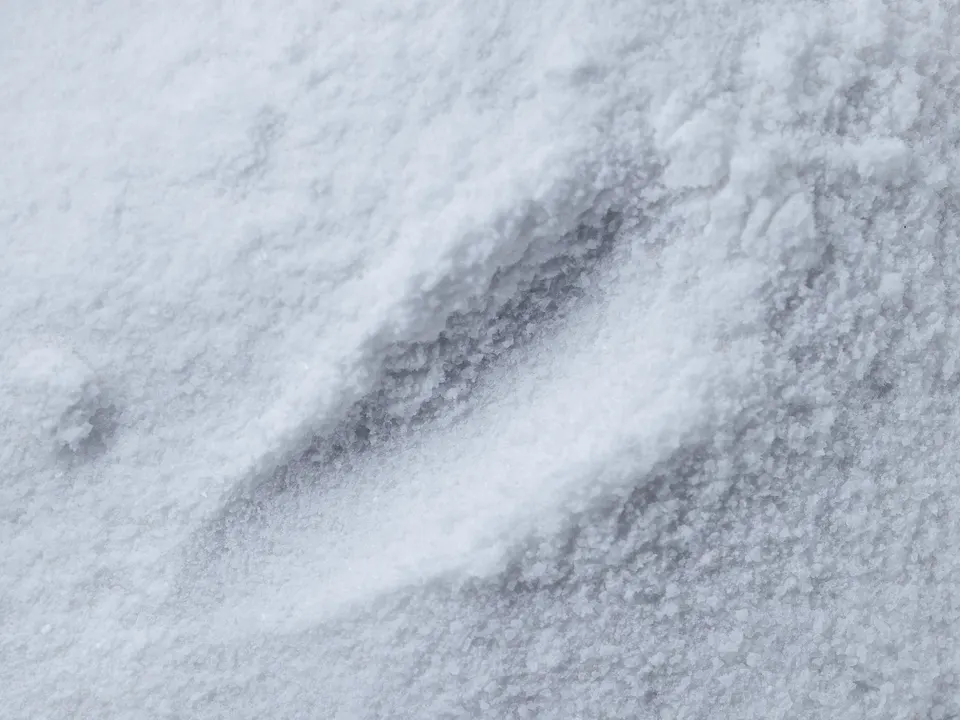

The five grades look alike to the eye. What sets them apart is particle size, shown in the specification below. Photographs are for illustration.
Ultrafine Uncoated Ground Calcium Carbonate, 1750 to 1880 Mesh
K-GCC-U2 is an ultrafine uncoated grade, milled to 1750 to 1880 mesh. Its median particle size is 2 to 2.4 µm and its top size is 8 µm.
It is the finest of the three uncoated grades.
- Mesh
- 1750 to 1880 mesh
- D50
- 2 to 2.4 µm
- D97
- max 8 µm
Fineness
What this fineness is suited to.
With a D50 of 2 to 2.4 µm and a D97 of up to 8 µm, this grade has very few coarse particles. It is suited to applications where a smooth surface and high brightness matter, such as premium paints and coatings, sealants and paper.
Mesh
1750 to 1880 mesh
Mesh is a sieve based name for fineness. A higher mesh number means a finer powder.
D50
2 to 2.4 µm
D50 is the median particle size. Half of the particles are smaller than this figure and half are larger.
D97
max 8 µm
D97 is the size below which 97% of the particles fall. It describes the coarse end of the powder, so a lower D97 means fewer large particles.
Specification
Specification table.
| Property | Value |
|---|---|
| Product code | K-GCC-U2 |
| Type | Uncoated |
| Mesh | 1750 to 1880 mesh |
| D50 (median particle size) | 2 to 2.4 µm |
| D97 (coarse end) | max 8 µm |
| CaCO3 content | 98% minimum |
| Whiteness | 94% or higher |
| Brightness | 94% or higher |
| Moisture | 0.3% maximum |
| Oil absorption | 18 to 24 g per 100 g |
| pH | 9 to 9.5 |
| Specific gravity | About 2.7 |
| Mohs hardness | 3 |
Mesh, D50 and D97 define the grade. Other values are typical. A technical data sheet and certificate of analysis are provided with every quotation.
Benefits
Key benefits.
- Very fine, with a top size of 8 µm
- Smooth finish in thin films
- High whiteness and brightness
- No surface treatment, so it suits water based systems
Packing
Packing options.
- 25 kg and 50 kg polypropylene bags
- Jumbo bags, 1 to 1.25 tonne
- Palletised or loose loaded
- Custom branding on request
See Quality and Logistics for shipping terms and documents.
Tell us what you need and we will send a quotation.
Send the product, grade, quantity and destination port. A technical data sheet and certificate of analysis are provided with every quotation.
