Fine Uncoated Ground Calcium Carbonate
750 to 800 mesh, D50 5 µm, D97 max 20 µm.

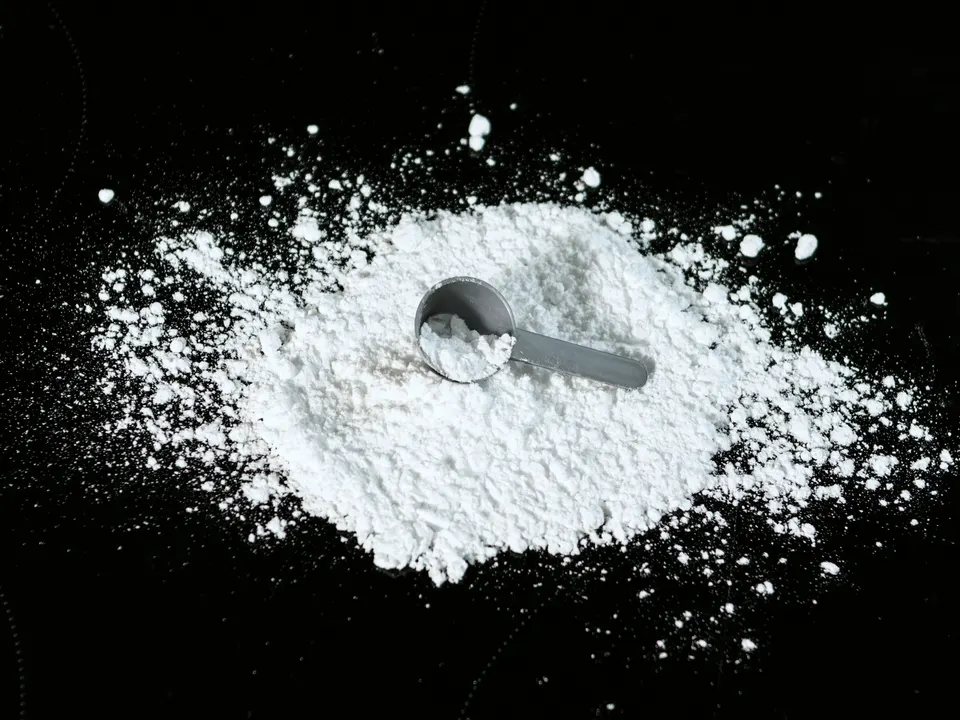

The five grades look alike to the eye. What sets them apart is particle size, shown in the specification below. Photographs are for illustration.
Fine Uncoated Ground Calcium Carbonate, 750 to 800 Mesh
K-GCC-U5 is the coarsest of the five grades. It is ground calcium carbonate milled to 750 to 800 mesh, with a median particle size of 5 µm.
It is a cost effective filler for systems where a very fine particle size is not required.
- Mesh
- 750 to 800 mesh
- D50
- 5 µm
- D97
- max 20 µm
Fineness
What this fineness is suited to.
With a D50 of 5 µm and a D97 of up to 20 µm, this grade gives good bulk and whiteness at a low cost. It suits applications where the finish does not depend on the very largest particles, such as putty, general purpose paints, adhesives and rubber compounds.
Mesh
750 to 800 mesh
Mesh is a sieve based name for fineness. A higher mesh number means a finer powder.
D50
5 µm
D50 is the median particle size. Half of the particles are smaller than this figure and half are larger.
D97
max 20 µm
D97 is the size below which 97% of the particles fall. It describes the coarse end of the powder, so a lower D97 means fewer large particles.
Specification
Specification table.
| Property | Value |
|---|---|
| Product code | K-GCC-U5 |
| Type | Uncoated |
| Mesh | 750 to 800 mesh |
| D50 (median particle size) | 5 µm |
| D97 (coarse end) | max 20 µm |
| CaCO3 content | 97% minimum |
| Whiteness | 93% or higher |
| Brightness | 93% or higher |
| Moisture | 0.3% maximum |
| Oil absorption | 12 to 18 g per 100 g |
| pH | 9 to 9.5 |
| Specific gravity | About 2.7 |
| Mohs hardness | 3 |
Mesh, D50 and D97 define the grade. Other values are typical. A technical data sheet and certificate of analysis are provided with every quotation.
Benefits
Key benefits.
- Natural whiteness and brightness
- Cost effective filler at a fine grind
- Good bulk in putty and paste systems
- No surface treatment, so it suits water based systems
Packing
Packing options.
- 25 kg and 50 kg polypropylene bags
- Jumbo bags, 1 to 1.25 tonne
- Palletised or loose loaded
- Custom branding on request
See Quality and Logistics for shipping terms and documents.
Tell us what you need and we will send a quotation.
Send the product, grade, quantity and destination port. A technical data sheet and certificate of analysis are provided with every quotation.
